Description

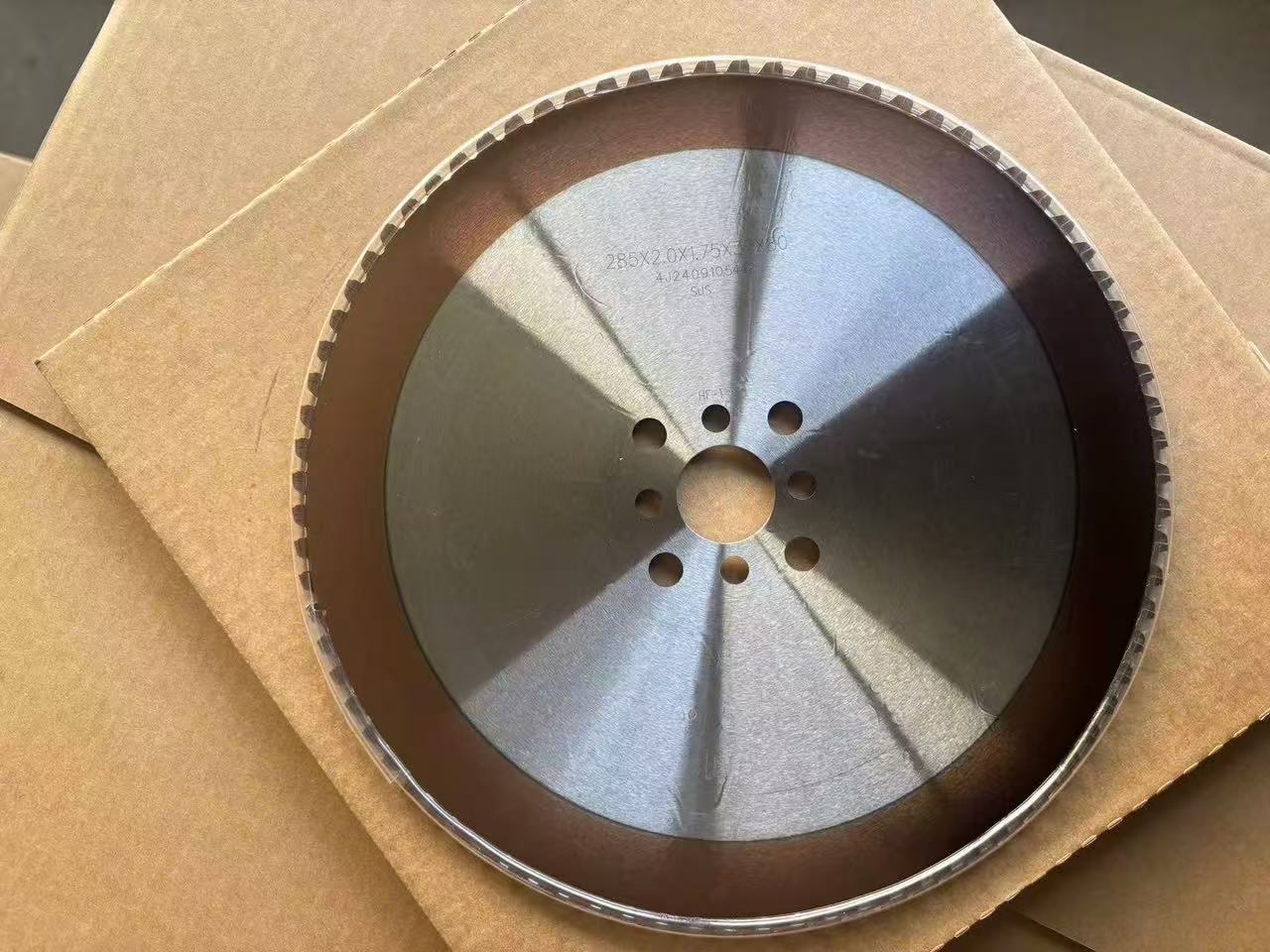

What Are Cermet Tipped Cold Saw Blades?
Cermet tipped cold saw blades are circular metal-cutting saw blades designed for cutting solid steel bars on compatible CNC cold saw machines and automated bar cutting lines.
Also known as cermet tipped circular saw blades, they use ceramic-metal composite cutting tips designed for heat resistance and wear resistance in demanding steel-cutting applications.
Unlike conventional carbide tipped cold saw blades, cermet saw blades use ceramic-metal composite cutting tips designed to provide heat resistance and wear resistance under suitable cutting conditions.
The cermet cutting material is designed to maintain hardness at elevated temperatures. Actual tool life and cutting performance depend on the workpiece material, cutting parameters, machine rigidity, and operating conditions.
Cermet cold saw blades are used on compatible CNC cold saw machines and automated bar cutting lines where cutting consistency, dimensional accuracy, and surface quality are important.
Materials Suitable for Cutting
Carbon Steel
- S20C
- S45C
- C45
- AISI 1020
- AISI 1045
Alloy Steel
- SCM440
- AISI 4140
- AISI 4340
- 42CrMo
Stainless Steel
- 201 stainless steel
- 304 stainless steel
- 316 stainless steel
- 316L stainless steel
Other Engineering Steels
- Forged steel
- Bearing steel
- Heat-treated steel
- Other engineering steels, subject to material grade and cutting conditions
Key Highlights
- Cermet-Tipped Cutting Edges
- Standard Sizes and Custom Specifications
- Tooth Geometry for Different Steel-Cutting Applications
- Consistent Cutting Performance and Controlled Burr Formation
- Wear Resistance and Thermal Stability
- Designed for Compatible CNC Cold Saw Machines
- OEM Manufacturing and Custom Laser Marking
- Support from Prototype Orders to Production Quantities
We manufacture standard and custom cermet tipped cold saw blades for steel processing companies, forging manufacturers, automotive component suppliers, steel service centers, and industrial machine builders. Blade specifications can be customized according to workpiece material, machine requirements, and cutting conditions.
Why Choose Our Cermet Cold Saw Blades?
Heat and Wear Resistance
Cermet cutting tips are designed to retain hardness at elevated temperatures and resist wear under suitable cutting conditions. Actual performance depends on the workpiece material, cutting parameters, and machine setup.
Tool Life and Wear Resistance
Cermet tipped cold saw blades are designed for wear resistance in steel bar cutting applications. Tool life depends on material grade, cutting speed, feed rate, coolant conditions, and machine rigidity.
Cutting Surface Quality
Appropriate tooth geometry and blade specifications can help achieve consistent cut surfaces and control burr formation when the blade is matched to the workpiece material and cutting conditions.
Production Efficiency
Designed for use on compatible CNC cold saw machines and automated bar cutting lines. Selecting suitable blade specifications and cutting parameters helps support consistent production performance.
Consistent Cutting Performance
Correct blade specifications, suitable tooth geometry, and proper machine setup help support stable cutting and repeatable results during production.
Custom Cermet Cold Saw Blades
We manufacture custom cermet tipped cold saw blades according to technical drawings, existing samples, and machine specifications. Available options include blade diameter, thickness, bore size, tooth count, tooth geometry, and pin hole configuration. Other options can be evaluated according to the application.
Common Sizes
| Diameter (mm) | Kerf (mm) | Bore (mm) | Teeth |
|---|---|---|---|
| 250 | 1.7 | 32 / 40 | 50, 60, 72, 80 |
| 285 | 1.7 | 32 / 40 | 60, 72, 80 |
| 285 | 1.75 | 32 / 40 | 60, 72, 80 |
| 315 | 2.25 | 32 / 40 / 50 | 60, 72, 80 |
| 360 | 2.25 | 40 / 50 | 60, 80, 100 |
| 425 | 2.25 | 50 | 40, 60, 80, 100 |
| 460 | 2.25 | 50 | 40, 60, 80, 100 |
| 520 | 3.0 | 50 | 40, 60, 80, 100 |
| 560 | 3.0 | 80 | 60, 80 |
| 580 | 3.1 | 80 | 60, 80 |
The specifications above are for reference only. Custom cermet tipped cold saw blades can be manufactured according to machine requirements, including blade diameter, kerf, bore size, tooth count, tooth geometry, and pin hole configuration.
Frequently Asked Questions
What is the difference between cermet and carbide cold saw blades?
Cermet tipped cold saw blades use ceramic-metal composite cutting tips, while conventional carbide tipped cold saw blades use cemented carbide tips. Their cutting performance and service life depend on the workpiece material, blade design, cutting parameters, and machine conditions. The appropriate blade should be selected according to the specific application.
Which materials can cermet cold saw blades cut?
Cermet tipped cold saw blades are used for cutting suitable grades of carbon steel, alloy steel, stainless steel, and other engineering steels. Material grade, bar dimensions, machine capability, and cutting conditions should be considered when selecting a blade.
Do you provide OEM manufacturing and custom laser marking?
Yes. OEM manufacturing and custom laser marking are available according to product specifications and customer requirements.
