Single Angle Milling Cutters

Custom Single Angle Milling Cutters | HSS, HSS-Co, TCT & Solid Carbide

Single Angle Milling Cutter Manufacturer for Chamfering, Bevel Milling & Angular Profile Machining

SUZHOU JIN LI (SZJL) Cutting Tools manufactures standard and custom Single Angle Milling Cutters in HSS, HSS-Co, TCT and Solid Carbide for chamfering, bevel milling, V-grooving, angular slot milling and profile machining.

We manufacture cutters with customized angles, diameters, thicknesses, bore sizes, tooth geometries and coatings according to drawings, samples or machining requirements.

Description

What Is a Single Angle Milling Cutter?

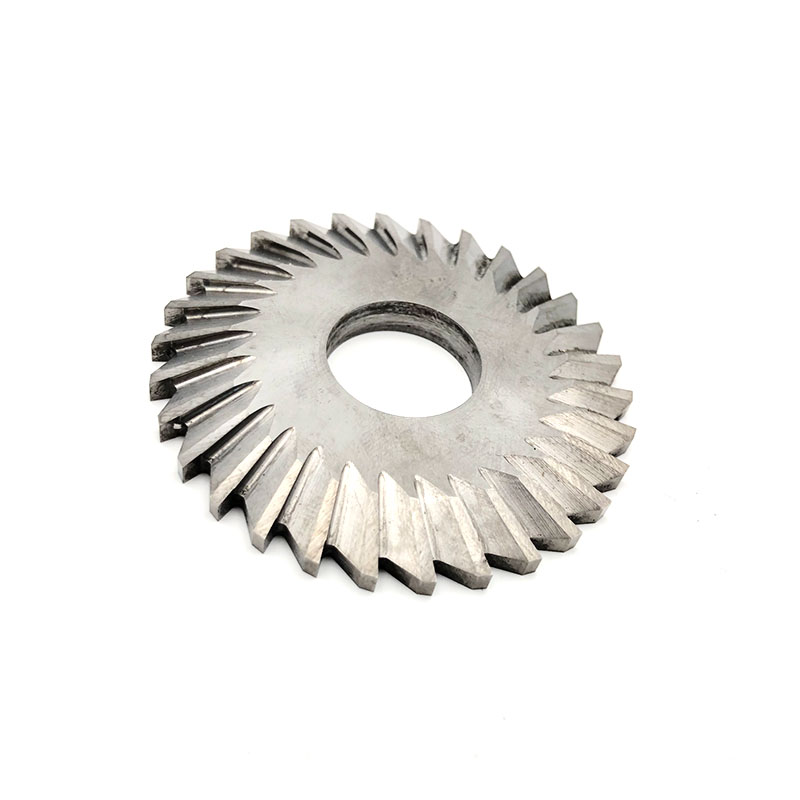

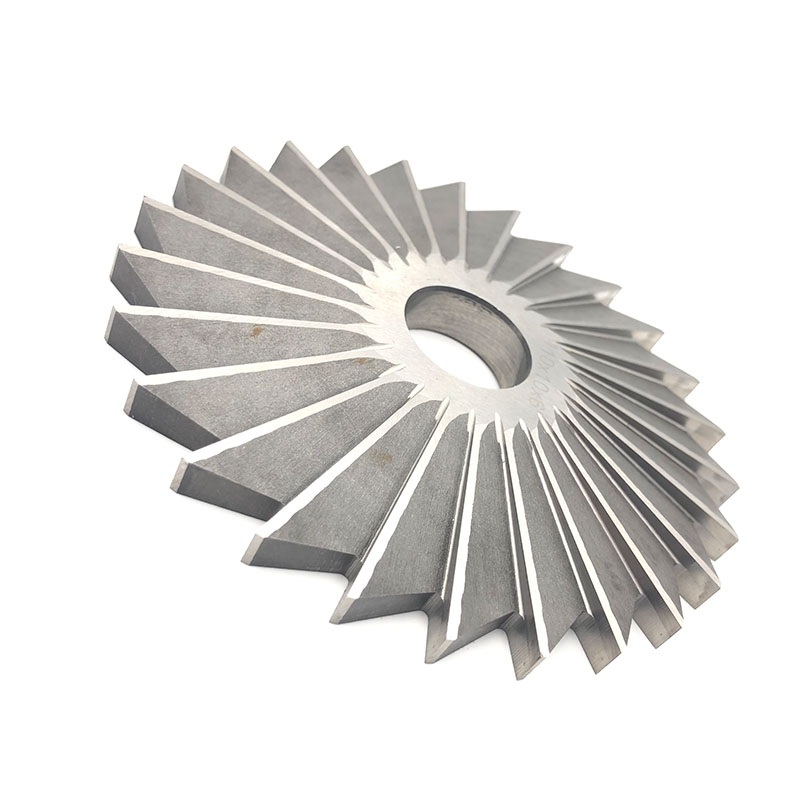

A Single Angle Milling Cutter is an arbor-mounted milling cutter with cutting edges on one angled face. It is used for machining chamfers, bevels, angled grooves and other angular profiles.

The cutter geometry is selected according to the required angle, workpiece profile and machining setup. For symmetrical V-grooves or profiles requiring machining on two angled faces, a Double Angle Milling Cutter may be more suitable.

Typical applications include:

  • Chamfer milling
  • Bevel milling
  • V-grooving
  • Angular slot milling
  • Edge preparation
  • Angular profile machining

For symmetrical V-grooves or double-sided angular profiles, a Double Angle Milling Cutter may be more suitable.


Why Choose Our Single Angle Milling Cutters?

Custom Cutting Geometry

Cutting angles, outside diameters, thicknesses, bore sizes and tooth geometries can be manufactured according to customer drawings or application requirements.

Multiple Material Options

HSS, HSS-Co, TCT and Solid Carbide are available for different workpiece materials and machining conditions.

Precision Grinding

Grinding processes are used to control cutter dimensions, cutting angles and tooth geometry for stable and repeatable production.

Flexible Production

We support prototype, small-batch and volume production.

OEM Manufacturing

OEM manufacturing and laser marking are available according to customer requirements.


Material Options

We offer four main material options:

  • HSS M2 – suitable for general-purpose milling where toughness and cost are important considerations
  • HSS-Co M35 – improved hot hardness compared with standard HSS, suitable for more demanding machining.

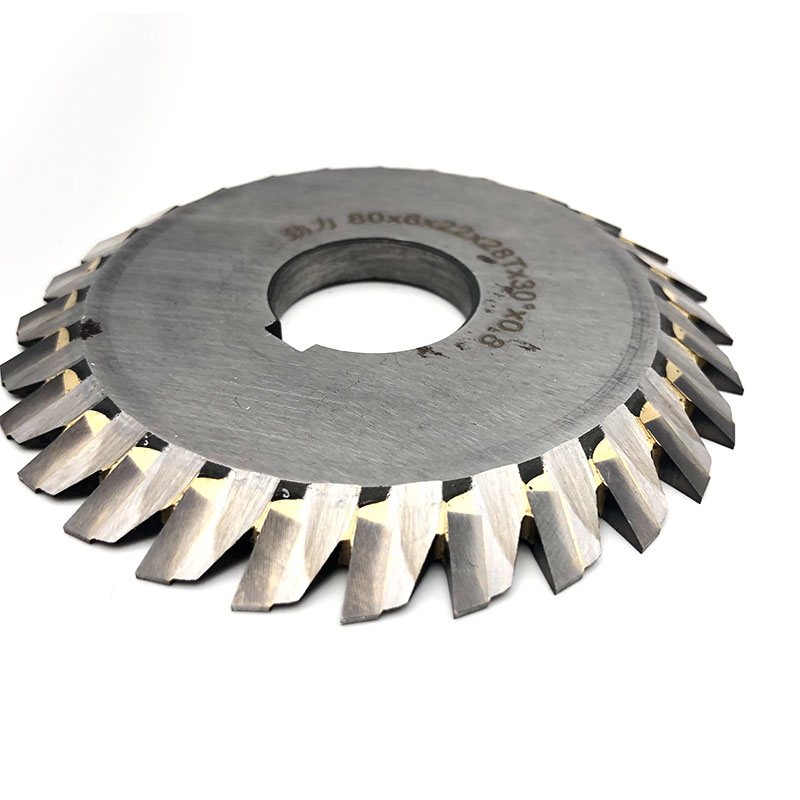

  • TCT – Tungsten carbide-tipped construction for applications requiring improved cutting-edge wear resistance.

  • Solid Carbide – Suitable for precision cutting applications requiring high hardness, wear resistance and dimensional stability.

Material selection can be recommended according to the workpiece material, cutting conditions, cutter size and required tool life.


Typical Industries

  • Aerospace
  • Automotive
  • Mold and die manufacturing
  • Tool manufacturing
  • Heavy machinery
  • General engineering

Technical Specifications

Parameter Standard Range Custom Options
Diameter 40–160 mm custom
Angle 30°, 45°, 60°, 75° 15°–90°
Thickness 3–16 mm 1–20 mm
Bore Size 13–32 mm Custom
Drive Features Standard bore Keyways, drive pin holes
Material HSS HSS-Co, TCT, Solid Carbide
Coating Uncoated TiN, TiAlN, AlCrN
Angle Accuracy Standard Precision ground
Tolerance Standard Up to ±0.005 mm

Available specifications and tolerances depend on cutter size, material, geometry and manufacturing requirements.


Single Angle vs Double Angle Milling Cutters

Single Angle Milling Cutters are designed for machining chamfers, bevels and other features with a single angled face.

Double Angle Milling Cutters have cutting edges on both sides and are commonly used for symmetrical V-grooves and double-angle profiles.

We can manufacture both single and double angle milling cutters according to drawings and machining requirements.


FAQ

What is a single angle milling cutter used for?

It is mainly used for chamfering, beveling, V-grooving, angular slot milling and angular profile machining.

Can you manufacture custom single angle milling cutters?

Yes. We can manufacture cutters according to drawings, samples, dimensions or specific machining requirements.

What coatings are available?

Available options include Uncoated, TiN, TiAlN and AlCrN.

Do you support OEM manufacturing?

Yes. OEM manufacturing and laser marking are available according to customer requirements.


Request a Custom Single Angle Milling Cutter

Looking for a standard or custom Single Angle Milling Cutter?

Send us your drawing, sample, dimensions or machining requirements. We can evaluate the required:

  • Cutter material
  • Diameter
  • Angle
  • Thickness
  • Bore
  • Tooth geometry
  • Coating
  • workpiece material and machining application

Contact us for a technical recommendation or quotation.
