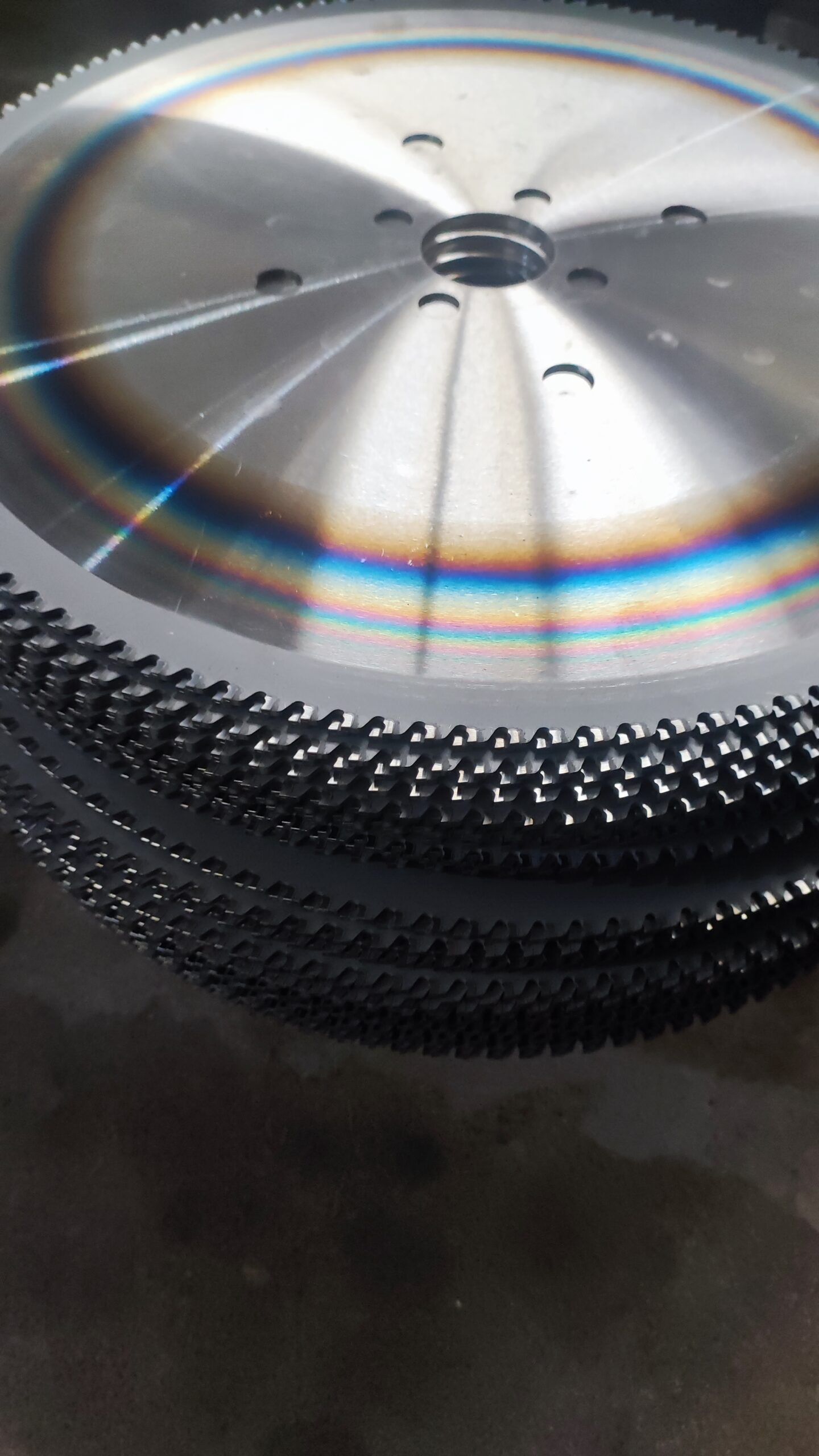

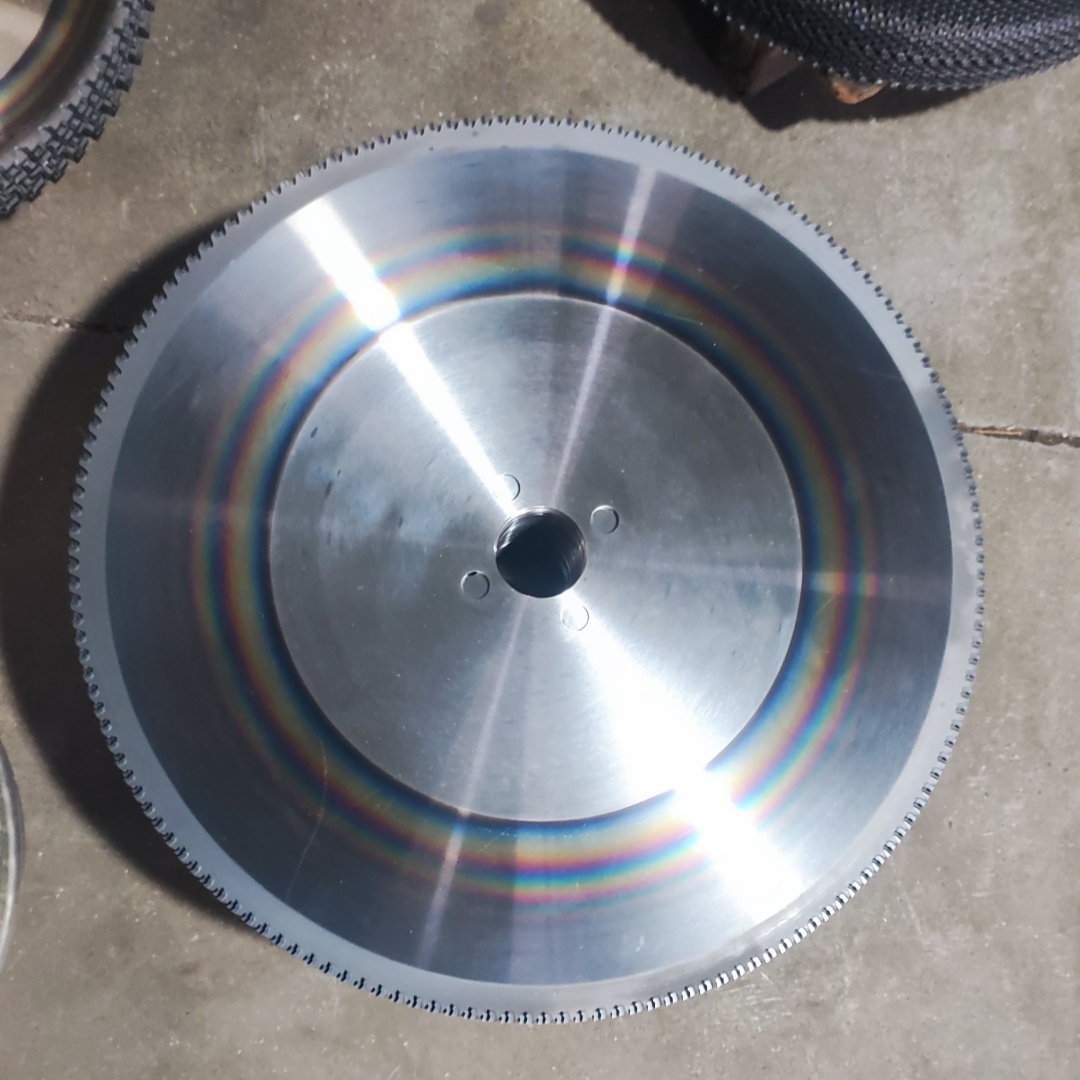

TCT Flying Cut-Off Saw Blades for Scarfed Tubes

TCT Flying Cut-Off Saw Blades for Scarfed ERW Tubes

High-Speed Carbide Flying Saw Blades for Scarfed ERW Tube Mills

SUZHOU JIN LI (SZJL) Cutting Tools manufactures TCT Flying Cut-Off Saw Blades for high-speed cutting of scarfed ERW steel tubes on continuous ERW tube mills.

Also known as TCT flying saw blades or carbide flying cut-off saw blades, these blades cut continuously produced welded steel tubes to the required length while the production line remains in operation.

Designed for high-speed tube production, they provide stable cutting performance, clean tube ends, controlled burr formation, and consistent cut quality.

Available for compatible single-blade and twin-blade flying saw systems, these blades support production line speeds of up to 600 m/min, depending on tube material, wall thickness, machine configuration, and cutting conditions.

Standard and custom specifications are available.

Description

Product Names

This product may also be referred to as:

  • TCT Flying Cut-Off Saw Blade
  • TCT Flying Saw Blade
  • Carbide Flying Cut-Off Saw Blade
  • Carbide Flying Saw Blade
  • Flying Saw Blade for Scarfed ERW Tubes
  • TCT Saw Blade for Scarfed Tubes
  • Scarfed ERW Tube Cutting Saw Blade
  • Scarfed Tube Mill Saw Blade
  • ERW Tube Mill Flying Saw Blade
  • High-Speed Tube Mill Saw Blade
  • TCT Steel Tube Cutting Saw Blade

Key Features

  • TCT carbide-tipped circular saw blade
  • Designed for scarfed ERW tube cutting
  • Single-blade and twin-blade systems
  • Production speeds up to 600 m/min
  • Clean and accurate tube ends
  • Low burr formation
  • Wear-resistant carbide teeth
  • Optimized tooth geometry
  • Optional PVD coatings
  • Standard and custom specifications

Applications

These TCT Flying Cut-Off Saw Blades are designed for cutting welded steel tubes with the internal weld bead removed after welding.

Typical applications include:

  • Scarfed ERW steel tubes
  • Carbon steel welded tubes
  • Structural steel tubes
  • Mechanical steel tubing
  • High-speed ERW tube mills
  • Continuous tube production lines
  • Automatic flying cut-off machines

The blades can be configured for compatible single-blade or twin-blade flying saw systems, depending on the machine design and cutting requirements.


What Are Scarfed ERW Tubes?

Scarfed ERW tubes are electric resistance welded steel tubes in which the internal weld bead is removed after welding.

Removing the internal weld bead creates a smoother internal tube surface and provides more consistent conditions for downstream processing and high-speed cutting.


Size

Blade Diameter (mm) Thickness (mm) Bore (mm) Teeth
400 3.0 / 2.5 50 130
450 2.9 / 2.5 50 140
500 3.5 / 3.0 50 160
550 3.8 / 3.3 140 140
560 3.8 / 3.3 50 170
600 4.0 / 3.5 50 150
630 4.0 / 3.5 80 150
690 3.8 / 3.4 90 200

Custom sizes, bore dimensions, tooth geometries, and coatings are available upon request.


Frequently Asked Questions

What is a TCT Flying Cut-Off Saw Blade?

A TCT Flying Cut-Off Saw Blade is a carbide-tipped circular saw blade used to cut continuously produced steel tubes while the tube mill remains in operation.

It is commonly used on high-speed ERW tube mills and flying cut-off machines.

What is the advantage of using a flying saw on a scarfed tube mill?

A flying saw cuts the continuously produced tube to the required length without stopping the tube production line, helping maintain continuous production at high line speeds.

What production speeds can these blades support?

Our TCT Flying Cut-Off Saw Blades can be used for production line speeds of up to 600 m/min, depending on tube material, wall thickness, blade specification, machine configuration, and cutting conditions.

Are single-blade and twin-blade systems supported?

Yes. We manufacture blades for both single-blade and twin-blade flying saw systems.

Can the tooth geometry be customized for scarfed ERW tubes?

Yes. Tooth geometry can be optimized according to tube diameter, wall thickness, material, production speed, and machine specifications.

Are PVD-coated blades available?

Yes. Optional PVD coatings are available for applications requiring improved wear resistance, heat resistance, and extended blade life.


Custom TCT Flying Cut-Off Saw Blades

Looking for a custom TCT flying saw blade for scarfed ERW tube cutting?

Send us your blade drawing, existing sample, tube dimensions, or tube mill specifications. We manufacture standard and custom carbide-tipped flying saw blades to match your machine requirements and cutting conditions.
